Pressing "F" on your keyboard will enable the framerate meter, which shows several performance statistics for the sim.


Configuration

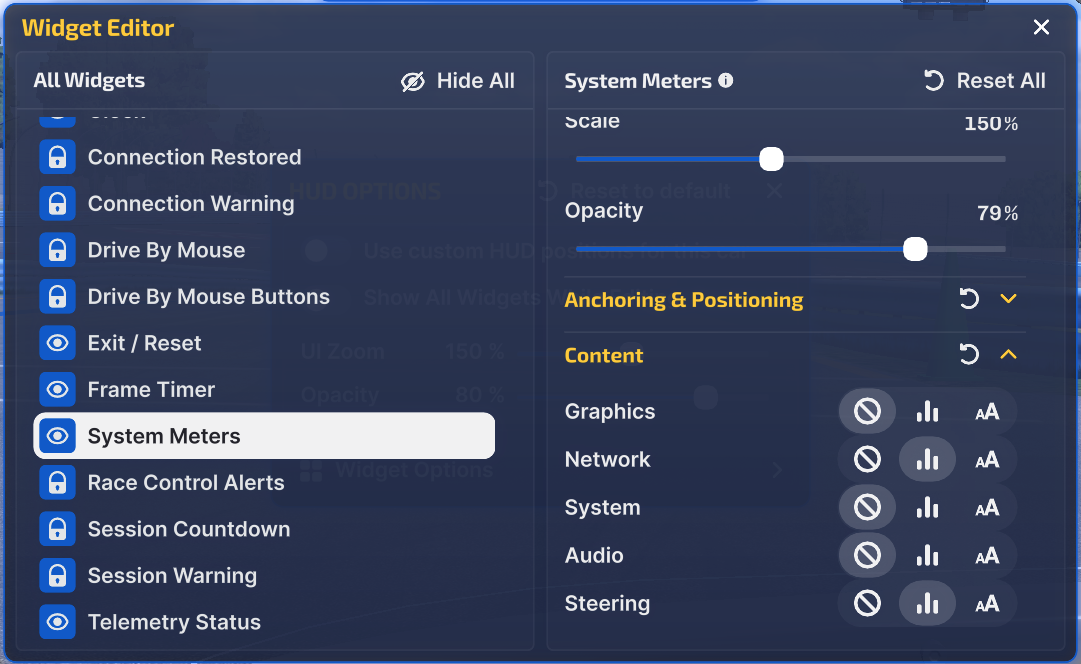

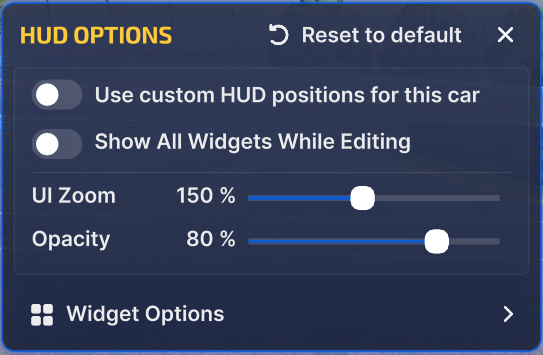

The framerate meter can be configured to show information on a wide range of systems, and these can be enabled individually on the Options tab of the SIM Options menu. The Graphical setting will show a bar for that setting, while Numeric will show a number value.



Display Explanations

Each row on the framerate meter shows a single letter and then either a horizontal bar or a text value. The meaning of each letter is listed in a tooltip that can be seen when mousing over the value. Solutions are listed if unacceptable values are seen for a given label.


LabelMeaningSolutions

R

The time it takes for the renderer to process a frame. A second bar shows the 15-second average in purple.

A full bar equals one cycle at exactly 60Hz, or roughly 16.7ms in Numerical mode.

In Numerical mode, the value is displayed in milliseconds.
Lowering or disabling settings that rely on the CPU will decrease the value.

Shadows, cubemaps, HDR, and object detail are good settings to adjust for this.

G

The time it takes the graphics card to draw a frame. The grey value represents a short-term average, while the purple bar is a longer-term average.

A full bar equals one cycle at exactly 60Hz, or roughly 16.7ms in Numerical mode.

In numerical mode, the value is displayed in milliseconds.N
Lowering or disabling settings that rely on the GPU will decrease the value.

HDR, Antialiasing (AA), mirrors, sharpening, heat haze, and distortion are good settings to adjust for this.

L

Latency is the time it takes for a message to travel between your PC and the iRacing server you are connected to.

The bar will turn yellow and then red as the latency increases. A latency in the red area for too long may lead to being dropped by the race server.

A full bar is 1 second.

In Numerical mode the value is displayed in milliseconds.
Latency is most often impacted by things outside of the iRacing simulator.

Check for other processes using bandwidth in the background or on other systems in your network.

Restart both your Modem and Router.

If none of this works there may be an issue with your ISP or another place in the network path.

However, if you see your C bar is also red it could cause increased latency. Fixing this should be done by fixing the C bar (see below).

Q

Network quality captures the number of dropped packets in both the receive and transmission sides.

A bar on the left indicates a loss of packets coming from the server to your PC. A bar on the right indicates the server is not receiving packets from your PC. The bar will turn yellow and then red as the network quality decreases. A value in the red for too long may lead to being dropped by the race server.

A full bar in either direction indicates 50% packet loss.

In Numerical mode, the value shows the percentage of packets being received by the race server and the local machine.
Network quality is most often impacted by things outside of the iRacing simulator.

Check for other processes using bandwidth in the background or on other systems in your network.

Restart both your Modem and Router.

If none of this works there may be an issue with your ISP or another place in the network path.

However, if you see your C bar is also red it could cause increased packet loss (and therefor degraded network quality). Fixing this should be done by fixing the C bar (see below).

C

The amount of time spent in the physics thread. This thread needs to be run 60 times a second to keep the user up-to-date with what is happening in the sim.

If the user is not able to keep up with the physics thread the S bar will start to rise. The bar will turn yellow and then red as the time spent in the physics thread reaches values near the limit. As with the "Q" bar, a green bar is good, yellow or orange means less than ideal synchronization with the iRacing service, and it will turn red if your synchronization is dropping below an acceptable level.

A full bar equals one cycle at exactly 60Hz, or roughly 16.7ms in Numerical mode.

In Numerical mode, the value is displayed in milliseconds.
The physics thread runs on the CPU, so anything recommended for decreasing the R value applies here as well.

Additionally, you may need to lower the number of cars you are receiving, using the Max Cars setting in the in-sim Options. Lowering this will reduce the number of cars for which you are doing physics work.

S

Skew is the amount of delay currently in the physics system. If a user is not able to maintain a 60Hz rate they will fall behind one tick at a time. This offset value is Skew.

If this bar spikes occasionally it may be due to high load momentarily, or various background processes on the PC. If it continuously rises the PC may be incapable of running the sim with the current settings.

A full bar is 1 second.

In Numerical mode the value is displayed in seconds.
Skew is caused by the C value reaching unacceptably high values, so cannot be reduced directly.

P

Page Faults occur when Windows needs to move data from memory to the hard drive or vice versa. It is normal to see this happen occasionally, but if it happens continuously, there may be an issue.

A full bar is 30 page faults per second.

In Numerical mode, the value is displayed in page faults per second.

If you seef a solid yellow or red bar the easiest solution is to lower the GPU Video Memory. The VidMemToUseMB setting is found in the \Documents\iRacing renderer file used for your display type. If this doesn't work you may benefit by adding RAM to your PC. Other processes and services running on your PC also use RAM, so it can help to reboot your PC and close down as many applications as possible before running the simulation - to free up as much physical memory as possible.


If you see a solid gray bar in the "P" meter, your system incurs many interrupts (or soft page faults) to manage virtual memory. You may benefit from reducing your GPU memory and restarting the sim.


If this doesn't help try also reducing the SysMemToUseMB option as well. Soft page faults like these may not be that bad, but if you can get rid of them, it will surely help performance.

For more information about making changes to the VidMemToUseMB and SysMemToUseMB options, please visit Manually Setting RAM and VRAM Allocated to the Sim



A

The percentage of the available CPU time used to process sounds for audio playback. A second bar shows the 15-second average in purple.

A full bar is 100% and would mean no CPU time was left for the simulation.
The audio bar should never reach peak values before other bars. If it does it most likely indicates an issue with an audio device.

Try deselecting, disabling, or unplugging audio devices to see if any resolve the issue. If so, reinstall drivers for that device.

X

The percentage of the available CPU time used to process sounds for the XAudio system. A second bar shows the 15-second average in purple.

A full bar is 100% and would mean no CPU time was left for the simulation.

The XAudio bar should never reach peak values before other bars. If it does it most likely indicates an issue with an audio device.


Try deselecting, disabling, or unplugging audio devices to see if any resolve the issue. If so, reinstall drivers for that device.


TThe T-Meter measures the total frame time from when the renderer starts generating the frame until the GPU finishes drawing it.

It is not exactly the same as the R + G timer, because the CPU queues frames to the GPU and they can pile up, also the GPU is running in parallel with the CPU.
Since this meter is similar to the sum of the R and G meters, anything done to reduce those values will also reduce the T value.
F
The F-Meter displays the force sent to the wheel.

While driving, you should set force feedback to avoid clipping (the meter turning red) at any time.

Clipping happens when more force is provided to the wheel than it can produce.

There is a second red/white Force Limiter bar above the main bar that only appears when force is being limited such as in a crash.
Reduce the maximum force and strength settings to avoid clipping.


E
Explicit Congestion Notification (ECN) meter

The "numeric" version of the E Meter displays a green "OK" when inactive.

The graphical version remains empty when inactive.

While the congestion response is active, the corresponding side of the E Meter will show a red "CE" or a full red bar (left side for download, right side for upload).

Voice Chat (inbound and outbound) is disabled if ECN is active.

If upload congestion is present, others will get the position of your car less frequently. If there are many people in the session, you might see fewer opponent cars - just as if your account's "Connection type" is set to a lower bandwidth amount.
